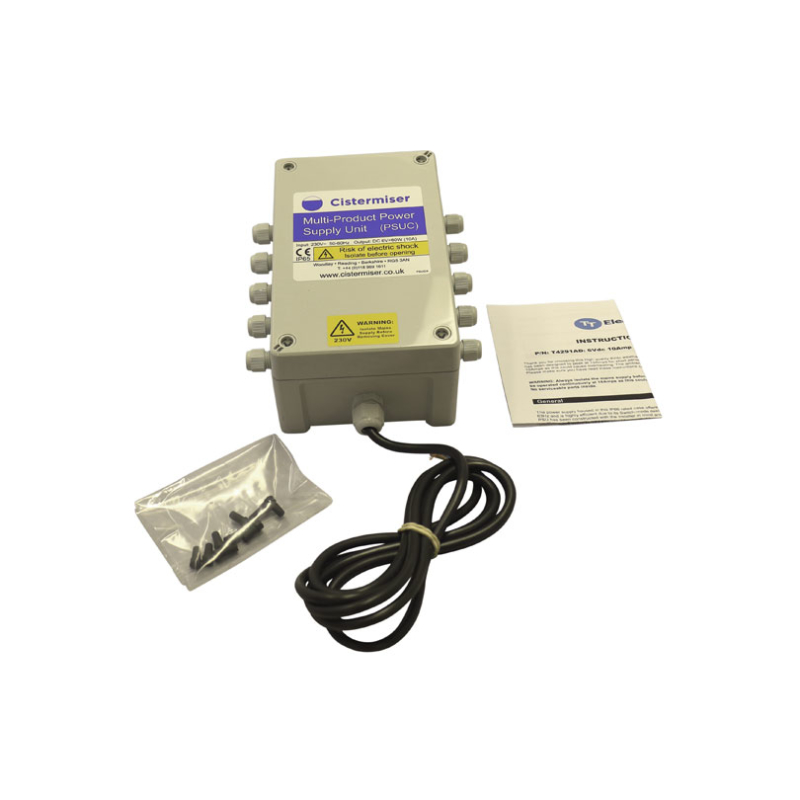

Overview

The Multi-Product Power Supply Unit supplies 10 channels of regulated 6V DC from a single fused spur.

Why buy this product?

This Multi-Product Power Supply Unit (PSUC) can supply power to Cistermiser hands-free operated valves when connected to each port, up to a 10A maximum pulsed load (max 1.25A per port).

How it works

The PSUC is compatible with the following Cistermiser products:

• Up to 10 Easyflush cistern-flushing toilet valves with infrared sensor activation max 1 per port
• Up to 30 Easyflush Direct main-flushing toilet valves with infrared sensor activation max 3 per port
• Up to 30 Direct Flush mains-flushing urinal valves with infrared sensor activation max 3 per port
• Up to 30 Novatap or Vectatap infrared taps max 3 per port
• Up to 7 Anti-Vandal (AV) range controllers max 1 per port.

When the glands are used and adequately sealed, the Multi-Product Power Supply Unit provides a high level of humidity and dust resistance by the employment of an IP65-rated enclosure.
Product specification

• IP65 rated plastic box with 10 x 12mm output cable glands and 1 x 16mm input cable gland
• Input: 230V AC, 50/60Hz 0.3A Max
• Output: 6V DC +/-5%, 10A Max. (300 milliseconds pulsed load) x 10 output ports with removable terminal blocks, each output has individual overload protection
• Ambient operating temperature: 0 to 40 degrees C
• Size: 187mm L x 122mm W x 90mm D
• Weight: 1 Kg
• Standard 1 year warranty can be extended to 3 years by registering the product online at Cistermiser's website
